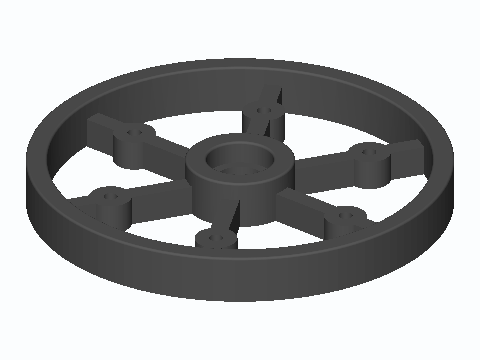

608 Bearing Swivel Monitor Lazy Susan Base
A spoked swivel base, 140 mm across and 16 mm tall, that turns any plywood board into a rotating monitor, laptop or printer platform. A 608 bearing (8 x 22 x 7 mm) press-fits into the 22.05 mm hub pocket. An M8 bolt comes up from the 18 mm head recess underneath and clamps the board to the bearing's inner race. The 7 mm-wide outer ring keeps the board from tipping, and six pads take 4.6 mm #8 wood screws if you want to fix the base to the desk.
