Screw-Draw Faucet Cartridge Puller Bridge

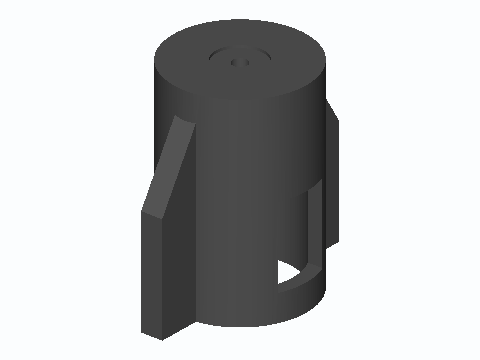

A reaction bridge for pulling stuck single-handle faucet cartridges (Moen 1222/1225 style and similar). The 50 mm OD tube sits on the valve body and clears cartridge heads up to 39 mm. A threaded rod screwed into the stem's handle-screw hole goes up through a 5.5 mm bore (passes M5 or #10), and tightening a nut on the 18 mm washer seat draws the cartridge straight out. Two side windows let you reach the retaining clip and watch the cartridge move, and two side wings stop the bridge from turning while you work the nut. It doesn't depend on any one brand's stem shape.
