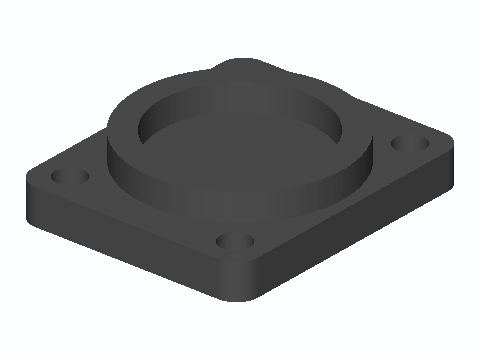

XLR And Speakon D-Size Hole Blanking Plate
A 26 x 31 x 4 mm blanking plate that closes an unused D-size connector cutout (24 mm round hole, M3 holes on a 19 x 24 mm pattern, as used by Neutrik XLR, Speakon and etherCON) in a rack panel, stage box or amp chassis. A 23.5 mm locating ring centres it in the cutout, and the four 3.4 mm M3 clearance holes line up with the screw holes already in the panel.
Ordering a print of any gallery model is free once you're signed in. Want the OBJ for your own printer? Download it for $1 — no account needed, we email you the link. Signed-in members can pay with credits instead.
