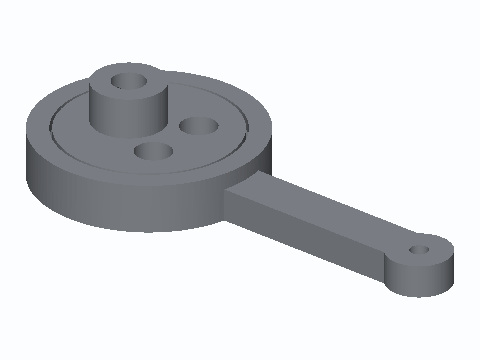

8 mm Shaft Eccentric Sheave And Strap
A print-in-place eccentric sheave and strap that turns 8 mm shaft rotation into a 12 mm push-pull stroke. Use it to drive pumps, shaker tables, sieves or agitators. The 44 mm disc has an 8.3 mm bore set 6 mm off-centre, locked by an M3 heat-set set screw. It turns inside a captive 56 mm strap ring held by a 45° V-groove and bead. The strap's arm ends in an M4 clearance eye at 80 mm centres.
mechanism eccentric 8mm-shaft print-in-place
