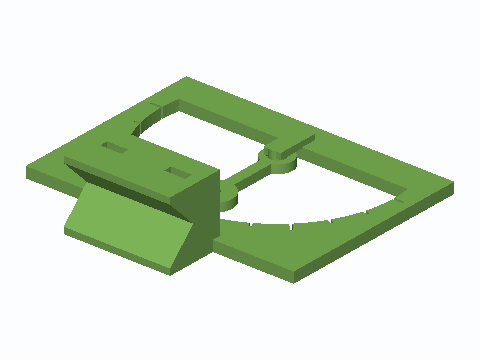

EMT Conduit Pendulum Bend Angle Gauge
A pendulum protractor for checking conduit bends. Its 90° V-foot sits on 1/2" EMT (17.9 mm OD) or 3/4" EMT (23.4 mm OD) and is held on by a rubber band or zip tie through two slots. A swinging pointer, printed in place, reads ticks every 15° (longer ones at 0°, 45° and 90°) in either direction, so you can check 22.5°, 45° and 90° stub-up bends while the conduit is still in the bender. The part is 126 x 114 x 32 mm, and you can drop an M5 bolt and nut into the bob's 5.5 mm hole to add weight so the pointer settles faster.
tool emt conduit-bending angle-gauge
