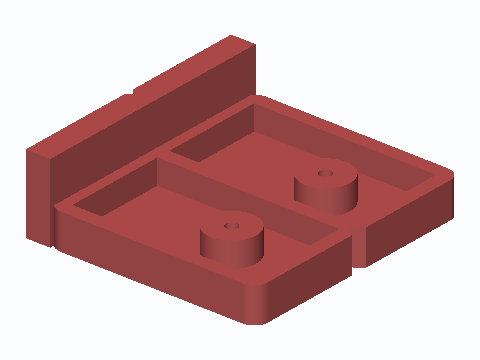

Euro Hinge Mounting Plate Drill Template
Fence-located drill template for Euro / Blum-style clip mounting plates. It puts two 3.4 mm guide bores 32 mm apart at the standard 37 mm setback from the cabinet's front edge, with V-notches that line up on your hinge centreline pencil mark. The 10 mm-long guides keep a 3 mm or 1/8 in pilot bit square, so you get matching pilot holes in every carcass side when re-hanging, shimming or swapping kitchen doors. Overall 66 x 70 x 22 mm.
tool euro-hinge cabinet drilling-jig
