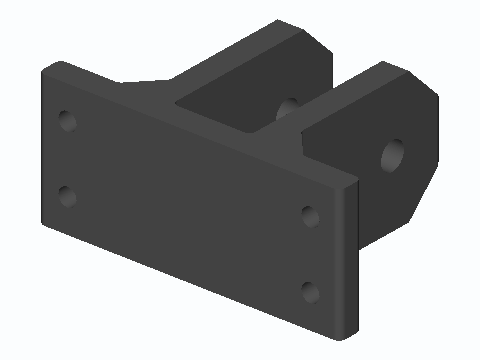

Joist-Mount M8 Hoist Pulley Fork Bracket
A ceiling-joist fork bracket for DIY bike, kayak and ladder hoists. It holds any rope sheave up to 22 mm thick and 80 mm in diameter (for example a 608-hub pulley) on an M8 bolt through 8.3 mm bores, so you don't have to buy a full hoist kit just for the pulley block. The four 5.5 mm holes take #10 (4.8 mm) wood screws into the joist. The part prints on its side, so the downward rope pull runs along the layers instead of across them.
garage pulley hoist joist-mount
⚠ Flagged: lifting or tensioned load. Not for safety-critical use without independent engineering review.
