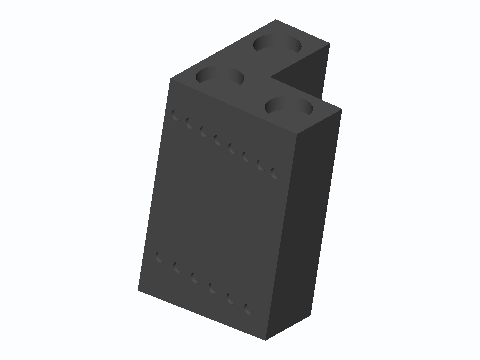

Magnetic 1:6 And 1:8 Dovetail Saw Guide
L-shaped hand-saw guide that hooks over the end of a board and holds a dovetail saw plate flat against a magnetic face angled 1:6 (9.5°) at one end and 1:8 (7.1°) at the other, so every tail and pin is sawn to the layout line with no drift. Takes six common 10 × 3 mm neodymium disc magnets (10.3 mm pockets, 3.2 mm deep, three per end, glue in flush), legs are 15 mm thick with 20 mm fences for stock up to 20 mm (3/4 in); 55 mm long, 43 mm high as printed. Use it from the far face of the board for the opposite lean and turn it 90° to saw pins. Six dimples mark the 1:6 end, eight mark the 1:8 end.
tool dovetail magnet woodworking
