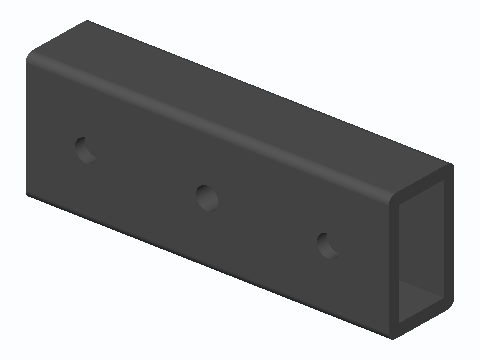

Pop-Up Canopy Mid Truss Pivot Connector
In-line connector that joins two halves of a pop-up canopy truss bar and carries the M5 pivot bolt for the crossing bar, replacing the cracked plastic X-pivot on Ozark Trail, E-Z UP and ABC style frames. Twin 32 mm deep sockets fit 25 x 13 mm rectangular truss tube (13.4 x 25.4 mm bore, 3 mm walls), a 5.5 mm pivot hole runs through the solid 26 mm center block with a captured M5 nut pocket on the back face, and 5.5 mm cross holes 15 mm from each mouth take the original rivets or M5 bolts; 90 x 19.4 x 31.4 mm overall. Measure your tube before ordering.
