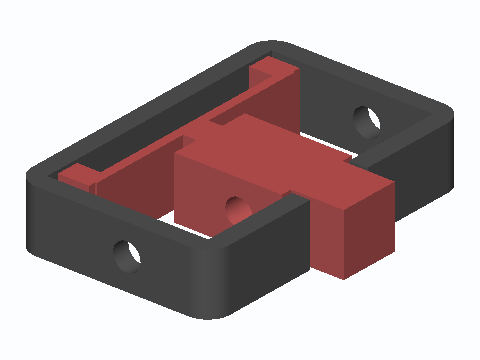

Print-In-Place Flexure Cord Lock
This print-in-place cord lock replaces the spring barrel stopper that rusts or snaps on jackets, bags and tent lines, and it works with 2–3 mm cord. Pressing the 4 mm button lines up the 3.6 mm cord holes. When you let go, two 13.5 mm printed leaf springs push the slider back so the holes sit 2.6 mm off-centre and pinch the cord. There is no metal spring to corrode. The frame is 26 x 40 x 8 mm and has 0.5 mm clearance on all sides. PETG gives the springs the longest life.
mechanism cord-lock drawstring compliant-spring
