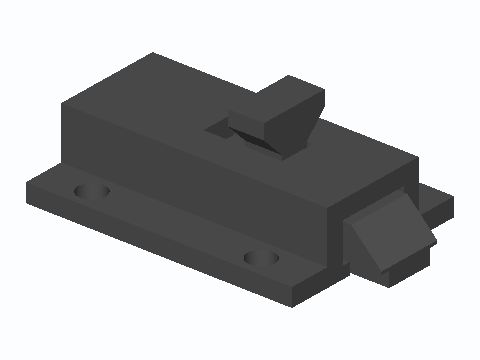

RV Cabinet Self-Latching Spring Bolt
A surface-mount latch that prints in place. The bolt is pushed out by a built-in serpentine flexure spring. Its 45° ramped nose rides over a strike and snaps behind it, and a flared thumb tab pulls it back 6.5 mm to open. It replaces cracked RV and camper cabinet snap latches. The 44 x 32 x 18 mm body fixes to the door with two #8 wood screws through 4.5 mm holes, and the bolt sticks out 6 mm past the housing to catch behind a face frame or a screwed-on block.
mechanism rv cabinet-latch spring-bolt
