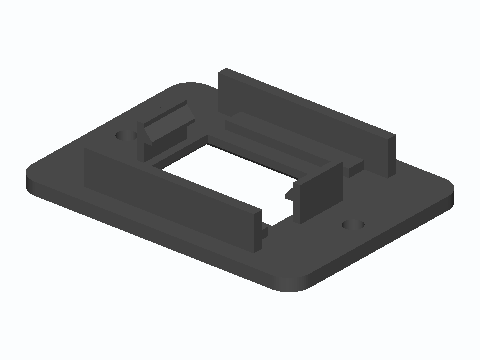

0.96 in OLED Snap-Finger Panel Bezel
A front-panel bezel for the common 0.96 in I2C OLED module, the one with the 4-pin header. The board drops face-first onto 1.6 mm ledges and two flexing side fingers snap over its back edge, so you don't need the module's M2 holes. The 54 x 40 mm flange covers a 34 x 34 mm panel cutout, bolts on with two M3 screws (3.4 mm holes, 44 mm apart) and has a 26 x 16 mm viewing window. The pocket takes boards about 26.5–28.5 mm wide, which covers the usual variation between suppliers.
