10° Contact Sensor Slotted Riser Wedge

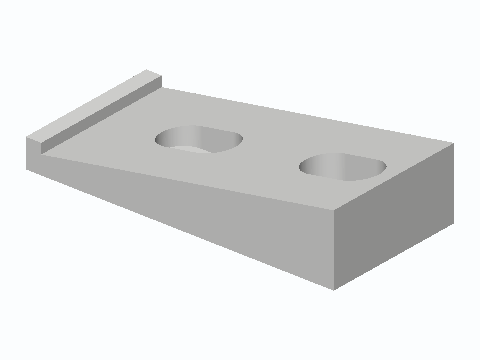

A 60 x 28 mm wedge with a 10° top face, 3 to 13.6 mm thick. It tilts an adhesive Zigbee or Z-Wave door/window contact sensor (or its magnet) square to its partner on angled, recessed or textured frames. It screws down through two 4.5 mm slots that each give 6 mm of travel along the length, so you can fine-tune the sensor-to-magnet gap. The slots take #6 wood screws (3.5 mm) or M4. The deep slot's screw head sits below the face in an 8.5 mm counterbore, and a 2.5 mm lip at the thin end holds the sensor in place while the tape grips.
