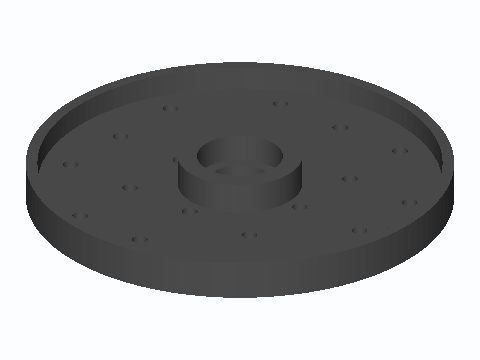

608 Bearing Rotating PCB Work Turntable
A one-piece 110 mm work turntable for soldering and assembling PCBs. A 22.05 mm hub on the underside press-fits a standard 608 bearing (8 x 22 x 7 mm), and it spins on any 8 mm bolt or rod through the inner race. A 20 mm grid of 4.0 mm bores takes M3 heat-set inserts for boards, standoffs or a small vise. The 3 mm skirt stiffens the 4 mm deck and a centre relief clears the bolt tip.
