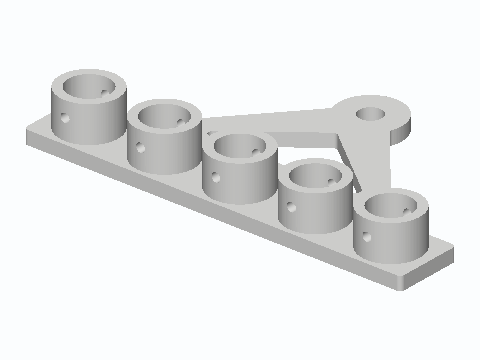

Ceiling Airer End Frame For 1/2 in EMT
One end frame for a pulley ceiling airer that hangs over a bath. Print two, slide five 1/2 in EMT rails (17.9 mm OD) through the 18.3 mm bores, and you have a towel and laundry rack that you raise and lower on a cord tied to the 10 mm rope eye. The frame is 170 x 99 mm with 22 mm deep rail collars at a 34 mm pitch. Each collar has a 4 mm side hole so you can pin the rail with a #6 self-drilling screw.
