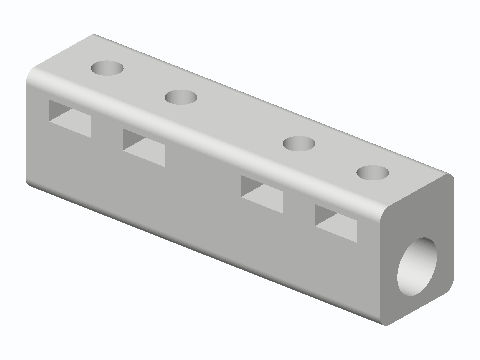

Concealed Cistern Flush Rod Splice Block
Repairs a snapped actuator rod behind a concealed-cistern dual-flush plate. The 48 x 12 x 14 mm splice block has a 6.4 mm through-bore that takes rod ends from 3 to 6 mm, and four M3 x 10 grub screws in captive-nut pockets hold the ends without needing to know the exact OEM rod size. It also lets you set the rod length, so you don't have to buy a whole new flush plate.
