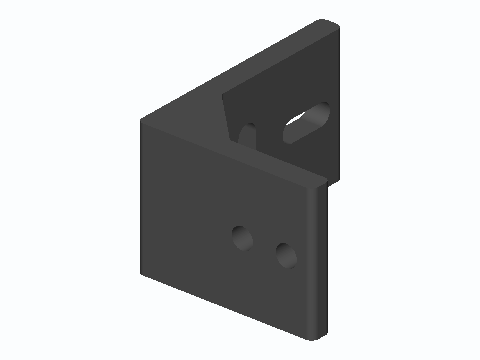

Desk Drawer False Front Slotted Reattach Bracket
This gusseted L-bracket re-hangs a desk drawer false front that has pulled off a flat-pack drawer box after its particleboard screw holes stripped. The 40 mm leg screws into the drawer side with two round 4.8 mm holes for #8 (4.2 mm) wood screws. The 50 mm leg has one horizontal and one vertical 4.8 mm slot, so you can shift the front ±4 mm sideways and up or down to re-align the gap. The bracket is 30 mm tall and prints on its end, so pulling on the drawer loads it along the layers rather than across them.
