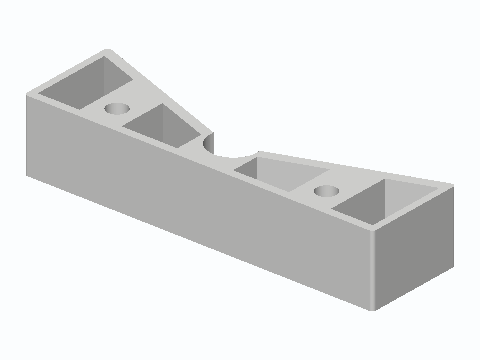

Twin-Rod 140° Book Scanning V-Cradle
A 150 x 30 mm V-cradle with a 140° opening for photographing books without breaking their spines. Two or more cradles slide along a pair of 8 mm smooth rods spaced 90 mm apart (8.3 mm slip bores), so you can set the support length to suit any book. A 20 mm spine trough and lightening windows keep it light and stiff.
Flagged: contact with food. Not for safety-critical use without independent engineering review.
