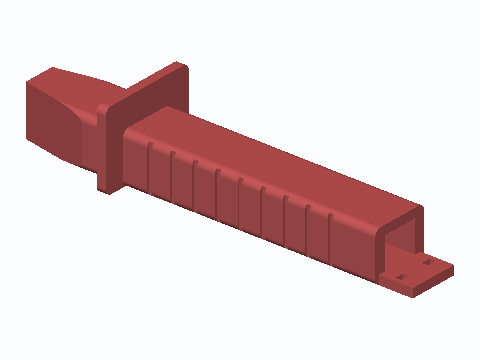

Capacitor Discharge Probe Handle
An insulated 175 mm handle for a homemade capacitor discharge tool. It has an enclosed 16 x 14 x 121 mm tunnel for the bleeder resistor, an M4 screw probe tip through the nose with a captive hex-nut pocket, a 44 x 34 mm finger guard, and a zip-tie strain-relief tongue for the clip lead. It gives the resistor-and-wire tool used on old PSUs, CRTs and microwaves a safe grip that keeps your fingers away from the tip.
Ordering a print of any gallery model is free once you're signed in. Want the OBJ for your own printer? Download it for $1 — no account needed, we email you the link. Signed-in members can pay with credits instead.
