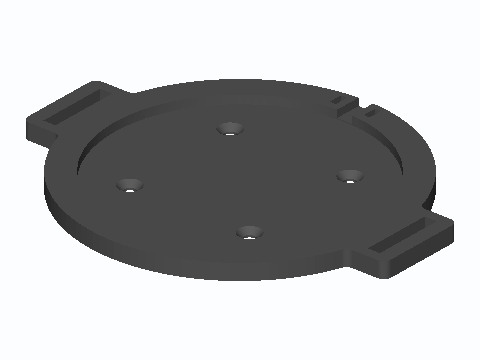

CB Mag-Mount Steel Disc Landing Pad
A 150 x 124 x 6.5 mm landing pad that lets a magnetic CB or ham whip grip a fiberglass boat, RV cap or ATV rack. You glue a 4 in (101.6 mm) steel disc, or any smaller steel plate, into its 103 mm recess. Four countersunk 4.6 mm holes take #8 wood screws or M4 bolts, and two 28 mm slots fit a 25 mm strap for rack mounting. A 6 mm coax groove with a zip-tie anchor keeps the feed line from pulling the magnet off.
Ordering a print of any gallery model is free once you're signed in. Want the OBJ for your own printer? Download it for $1 — no account needed, we email you the link. Signed-in members can pay with credits instead.
