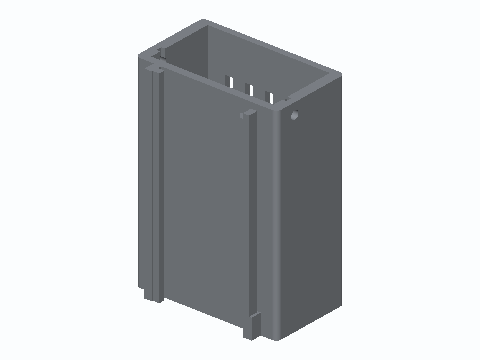

DIN Rail Slide-In 50x70 Perfboard Sleeve
A sleeve that snaps onto a 35 mm TS35 DIN rail. A 50 x 70 mm perfboard (1.6 mm thick) slides into card grooves and is held in place by a 3 mm pin or M3 screw across the top. It has front vent slots, a 20 x 12 mm cable slot in the floor and a flex latch for mounting without tools. Outside size is 57 x 32.5 x 80 mm.
Flagged: mains electrical wiring. Not for safety-critical use without independent engineering review.
