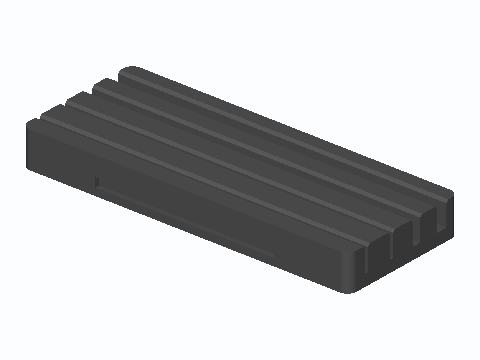

Four-Lane 2.54/2.0 mm Header Squaring Bar
A 110 x 44 x 12 mm weighted bar you flip onto a perfboard so a header's exposed pins drop into one of four 8 mm deep slots: 1.1 mm for single-row 2.0 mm, 1.3 mm for single-row 2.54 mm, 3.0 mm for double-row 2.0 mm and 3.7 mm for double-row 2.54 mm. The slot walls hold the pins square while the flat face presses the plastic body flat to the board. The slots run the full length and are open at both ends, so headers up to 40 pins (101.6 mm) fit, and every slot has a 45° lead-in so the pins find their way in.
