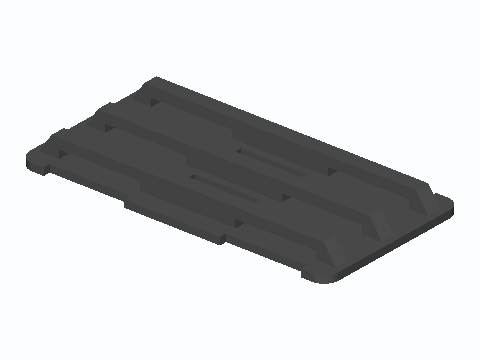

FPV Belly-Mount Battery Skid Shoe
This sacrificial skid shoe fits under the battery on belly-mount FPV quads. You don't need to drill anything because the battery strap you already use holds it on. The strap runs through 22 mm tunnels and edge notches, which fit standard 20 mm straps on any LiPo up to 44 mm wide. The 84 x 44 x 7 mm plate has three ramped runners that take the scrape on hard landings, so the battery wrap and frame plate stay clean.
Flagged: battery or DC power. Not for safety-critical use without independent engineering review.
