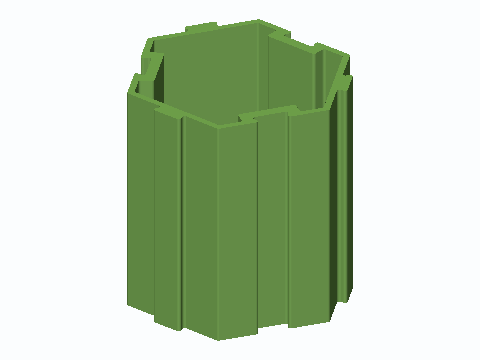

Interlocking Hex Pen Pot Cell 60 mm
A 60 mm across-flats, 70 mm tall hex desk pot with dovetail rails on three alternating faces and matching sockets on the other three. Any print slides into any other from above, so you can build a honeycomb of pen, scissors and tool cups that holds together as one block instead of sliding apart. Fit clearance is 0.25 mm per side, and the floor and walls are 2 mm thick, so each cell uses about 40 cm³.
Dovetail And Peg Fit-Test Coupon
This is the print-first tolerance tester for the 'Dovetail-Stacking Parts Drawer Cabinet' kit. It is a 72 × 14 × 30 mm block that prints standing up. Its three vertical dovetail grooves (7.6/10.6, 8.0/11.0 nominal and 8.4/11.4 mm, all 2.5 mm deep) test a printed Bowtie Dovetail Joiner Key. Three 3 mm deep blind holes (4.1, 4.3 and 4.5 mm) test the Peg-On Drawer Label Holder's 4.0 mm split pegs. Raised 1-, 2- and 3-dot marks show which size is tight, nominal or loose, so you can tell whether your printer will slide the whole cabinet together before you print six housings.
Dovetail Cabinet Plinth Foot
The base foot of the 'Dovetail-Stacking Parts Drawer Cabinet' kit. It is a 70 × 130 × 8 mm ladder-frame plinth with a 7.4 → 10.4 mm dovetail tongue on top. The bottom 70 × 50 × 130 mm Dovetail Drawer Cell Housing slides onto the tongue from the front. Four 5.0 mm holes with 9.5 mm 90° countersinks take #8 wood screws (4.2 mm shank) to fix the column down, so it can't tip forward when you pull out a loaded drawer.
Bowtie Dovetail Joiner Key
A 128 mm long double-dovetail (bowtie) key for the 'Dovetail-Stacking Parts Drawer Cabinet' kit. It is 10.4 mm wide at both faces, narrows to a 7.4 mm waist and is 4.4 mm thick. It slides into the 8/11 mm × 2.5 mm dovetail grooves of two neighbouring 70 × 50 × 130 mm Dovetail Drawer Cell Housings and locks them together top-to-bottom or side-to-side, so stacked cells can't pull apart. It needs no screws or other hardware, has 0.3 mm of clearance per side and 0.8 mm lead-in chamfers on both ends, and prints flat with no supports.
Dovetail Drawer Cell Housing
A 70 × 50 × 130 mm open-front sleeve that holds one drawer in the 'Dovetail-Stacking Parts Drawer Cabinet' kit. Each of its four long faces has an 8/11 mm dovetail groove, so cells can lock to each other in any direction with bowtie keys. Inside are 18 mm ribs, one of which is the drawer rail with a 1.5 mm detent bump. The back plate has two keyholes at ±20 mm (10 mm entry, 5 mm slot) for hanging it on the wall with #8 wood screws. It prints standing on the back plate, so it needs no supports.
Dovetail-Link Drawer Bin
A 100 x 62 x 38 mm open-front parts bin with a vertical dovetail rail on one side and a matching undercut socket on the other, so bins slide together into a row that can't shuffle around in a drawer (116 mm link pitch). The recessed 56 x 8 mm label panel takes a strip of tape, the 28 mm finger scallop lets you reach in, and two M3 clearance bosses (3.4 mm through, 6.6 mm counterbore) let you screw a bin down to a shelf or cleat board instead.
