30 mm Fan Strap-On ESC Heatsink Shroud

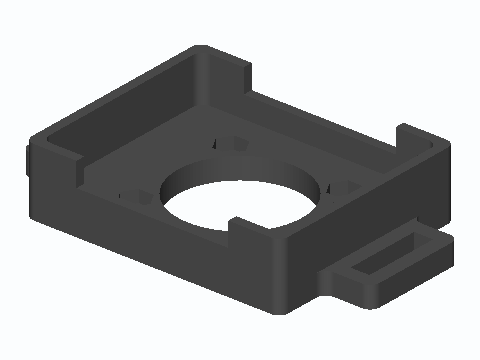

A strap-on plenum hood that puts a 30 mm fan (24 mm M3 hole pattern) over the bare finned heatsink of a VESC, ESC or motor driver. It stops you having to zip-tie the fan straight onto the fins. The fan bolts on with M3 screws into captured hex nuts. The 50 x 40 mm open mouth sits 9.5 mm above the fins and has side exhaust notches. Two end slots take a hook-and-loop strap up to 15 mm wide, or zip ties. Overall size is 74 x 44 x 14 mm.
