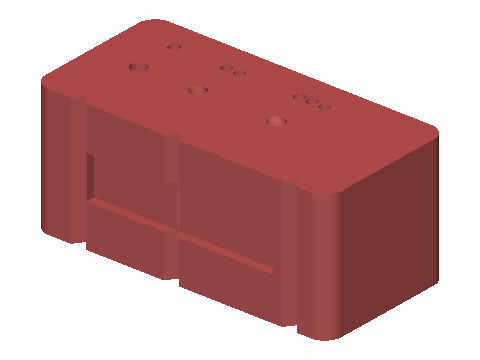

Grab Bar Off-Stud 0/15/30° Pilot Drill Guide
This 70 x 34 x 30 mm drill block has three 3.6 mm guide bores set at 0°, 15° and 30° for a 1/8 in (3.2 mm) bit. When a fixed 24 in or 36 in grab-bar flange hole lands beside a stud instead of over it, you can still drill a pilot hole that angles into the 1-1/2 in (38 mm) stud face. A V-notch on the front edge marks where each bore exits, so you line up the notch with the flange-hole mark and drill at a known angle instead of guessing.
