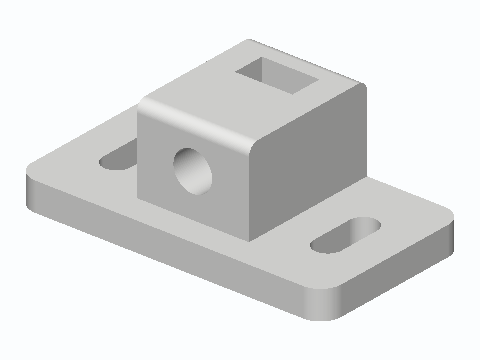

Medicine Cabinet Adjustable M5 Bolt-Head Magnet Strike
This replaces the moulded strike housing that snaps off medicine cabinet frames, which is never sold on its own. A 44 x 24 mm flange screws to the inside side wall through two slotted holes sized for #6 (3.5 mm) screws. A drop-in pocket holds an M5 hex nut (8 mm across flats), and a steel M5 cap screw threads through it so the screw head becomes the strike. Turn the screw in or out to set the door's close depth against its existing magnet. Nothing depends on the size of the magnet.
