Three-Lane Inline Wire Splice Soldering Cradle

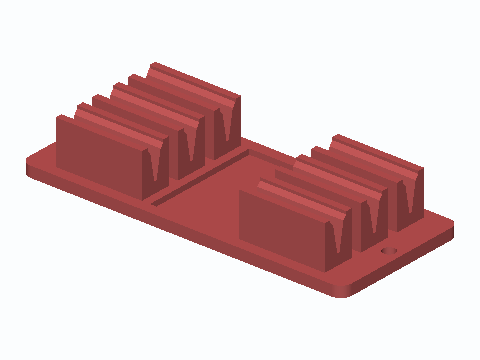

This bench cradle holds two wire ends in line for a solder splice. Each wire presses down into a tapered pinch slot that narrows from 4.5 mm to 1 mm, so it grips insulated wire about 1–4 mm OD with no clamps or screws. There are three lanes on a 16 mm pitch and a 36 mm open gap for the iron with a recessed solder-drip trough below. The base is 120 x 52 mm, and two 4.5 mm holes take M4 or #8 screws to fix it to the bench.
