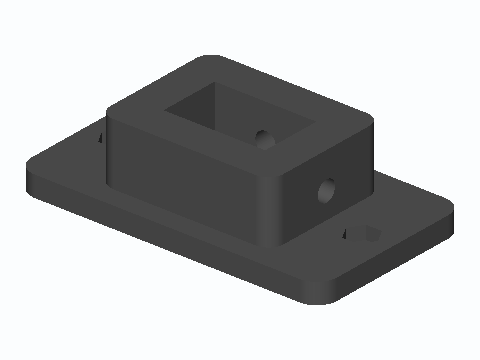

XT60 And XT30 Set-Screw Panel Bulkhead
This bulkhead holds a loose XT60 or XT30 connector in a go-box, robot base or battery enclosure wall. The connector sits in a 20 x 12 mm window and two M3 set screws in heat-set inserts (4.0 mm bores) press it into the corner, so the bulkhead doesn't depend on exact housing sizes. The 60 x 34 mm flange mounts through the panel with two M3 screws on 48 mm centres, and the M3 nuts sit in captive pockets.
Flagged: battery or DC power. Not for safety-critical use without independent engineering review.
