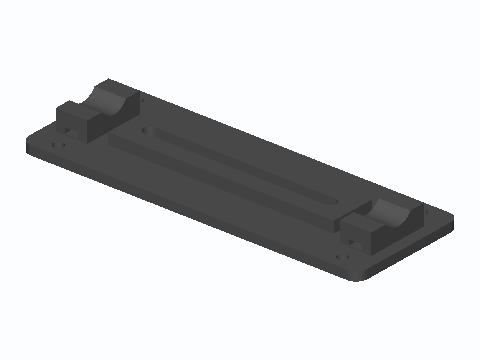

ANL Fuse Holder Slotted Riser Plate
A 150 x 54 mm riser plate for bolting an ANL/MIDI fuse holder or small distribution block under a seat or in a trunk. The holder doesn't need to have any particular hole spacing: an 80 mm M5 slot along the 9 mm rail has a hex-nut channel underneath, so both bolts can slide anywhere from 0 to 80 mm apart. Four 4.5 mm holes take #8 or M4 screws into the floor, and a zip-tie saddle at each end holds power cable up to about 13 mm OD so the leads can't work the holder loose.
Ordering a print of any gallery model is free once you're signed in. Want the OBJ for your own printer? Download it for $1 — no account needed, we email you the link. Signed-in members can pay with credits instead.
