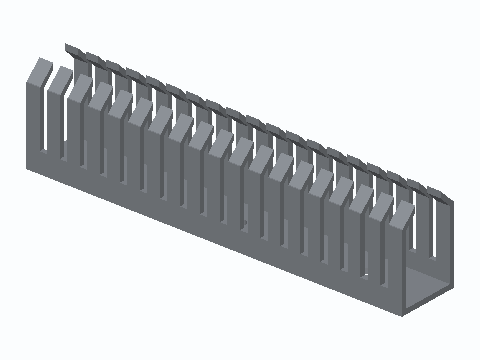

Lidless Flex-Lip Panel Wiring Duct
A 150 mm length of slotted control-panel wiring duct, 25 mm wide x 30 mm tall, with 3 mm wire-entry slots on an 8 mm pitch. The lid is replaced by 45° flex lips with a 12 mm throat that hold the wires in, so you never have to pry a duct cover off again. It mounts to an enclosure back plate or DIN panel with three M4 screws on a 50 mm pitch (4.5 mm clearance holes), and the 21 mm inside width leaves room for the screw heads.
