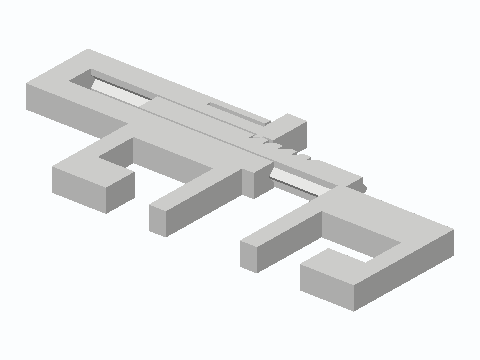

Twin-Knob Vanity Ratchet Slide Lock
A print-in-place ratchet slide lock for vanity or cabinet doors with two side-by-side knobs. L-slot jaws hook around both knob stems, and a 5 mm pitch sawtooth with a sprung pawl pulls them together. Press the pull tab to release. Rail is 80 x 26 x 8 mm; the jaws fit knob stems up to 15 mm thick, and it adjusts over 20 mm of travel.
